CUAV 4G LTE Link SE Data & HD Video 1080P Telemetry for Pixhawk - APM - PX4 - IoT

SKU:

N/A

Ex. VAT: 698.35

This combination does not exist.

845.00 €

Add to Cart

Brand: CUAV

Guaranteed safe checkout

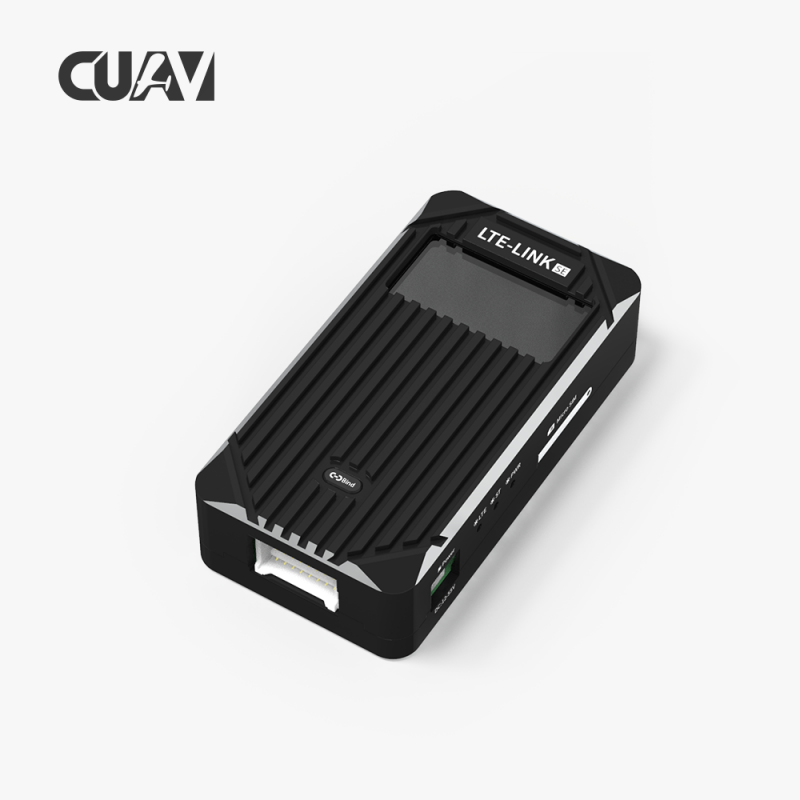

CUAV 4G LTE-LINK SE is a module for data communication and HD 1080p video through the mobile phone network.

Accessories	Telemetry

processor	HI3516
Network card	ME909S*
Network frequency band	LTE(FDD): B1、B3、B8
	LTE(TDD): B38、B39、B40,B41
	DC-HSPA+/HSPA+/HSPA/UMTS: B1、B9、B5、B8、B9
	TD-SCDMA: B34, B39
	EDGE/GPRS/GSM: 900/1800MHz
Network speed	DC-HSPA+：download 42Mbps;Upload：5.76Mbps
	LTE TDD ：download 112Mbps;Upload：10Mbps
	LTE FDD ：download 150Mbps;Upload：50Mbps
Flight control type	CUAV series、Pixhawk series
Data protocol	MAVLINK1、MAVLINK2
Video definition	1080P（HD)、720P(FD)
Video encoding	H265
Network extension	not support
Video storage	auto start (default), save to SD card
GCS	feigong GCS ：Windowes7 Or higher
	FeiGong Transmission ：Windowes7 Or higher
	CUAV GS ： Android5.0 Or higher
	Third Party Ground Station requires feigong transmission
Working conditions and hardware parameters
Operating Voltage	10-55V
Working current	12V/1.5A
Operating temperature	-10°~ +60°
size	75.3mm39.2mm19mm
shell material	6063 Aviation Aluminum
Antenna interface type	SMA inner hole
Display	OLED Resolution: 128*64
	Sport type
Video	HDMI
Extension ports	UART1,TYPE-C USB1,Antenna3,HDMI IN1
